Deskripsi Produk
Product Attributes
Model No.: JWM-A
Function: Electronic Type
Supply Ability & Additional Informations
Packaging: strong carton suitable for seal transportation
Brand: Ailipu
Transportation: Ocean,Land,Air
Place of Origin: Zhejiang, China (Mainland)
Port: Ningbo,Shanghai,Guangzhou
Packaging & Delivery
- Package Type:
- strong carton suitable for seal transportation
Product Description
** Mechnical actuated diaphragm, no leakage structure
** The material of pump head can be PVC, PTFE, PVDF and SS316
** It is used for corrosion resistant liquid
** It can be installed on the medicine groove
** Easy installation and simple repair and maintenance
** It is safe to operate it
** Capacity can be adjusted from 0 to 100% during operation
** It can be equipped with digital Controller with remote control
| MOde | (L/h) | (MPa) | (mm) | (min-1) | (mm) | (inch) | (kg) | (w) |
| JWM-A6.5/1 | 6.5 | 1 | 2 | 54 | φ65 | ID:9od:15 | 7.3 | 2.5UF 40W 220V/50HZ |
| JWM-A12/1 | 12 | 2 | 108 | |||||
| JWM-A24/1 | 24 | 4 | 90 | |||||
| JWM-A32/1 | 32 | 4 | 135 | 7.4 | ||||
| JWM-A42/1 | 42 | 5 | 135 | |||||
| JWM-A60/1 | 60 | 5 | 150 | |||||
| JWM-A80/0.5 | 80 | 0.5 | 4 | 150 | φ84 | 8.5 | ||
| JWM-A90/0.5 | 90 | 5 | 135 | |||||
| JWM-A100/0.5 | 100 | 5 | 150 | |||||
| JWM-A110/0.3 | 110 | 0.3 | 4 | 150 | φ94 | |||
| JWM-A120/0.3 | 120 | 5 | 135 | |||||
| JWM-A150/0.3 | 150 | 5 | 150 |

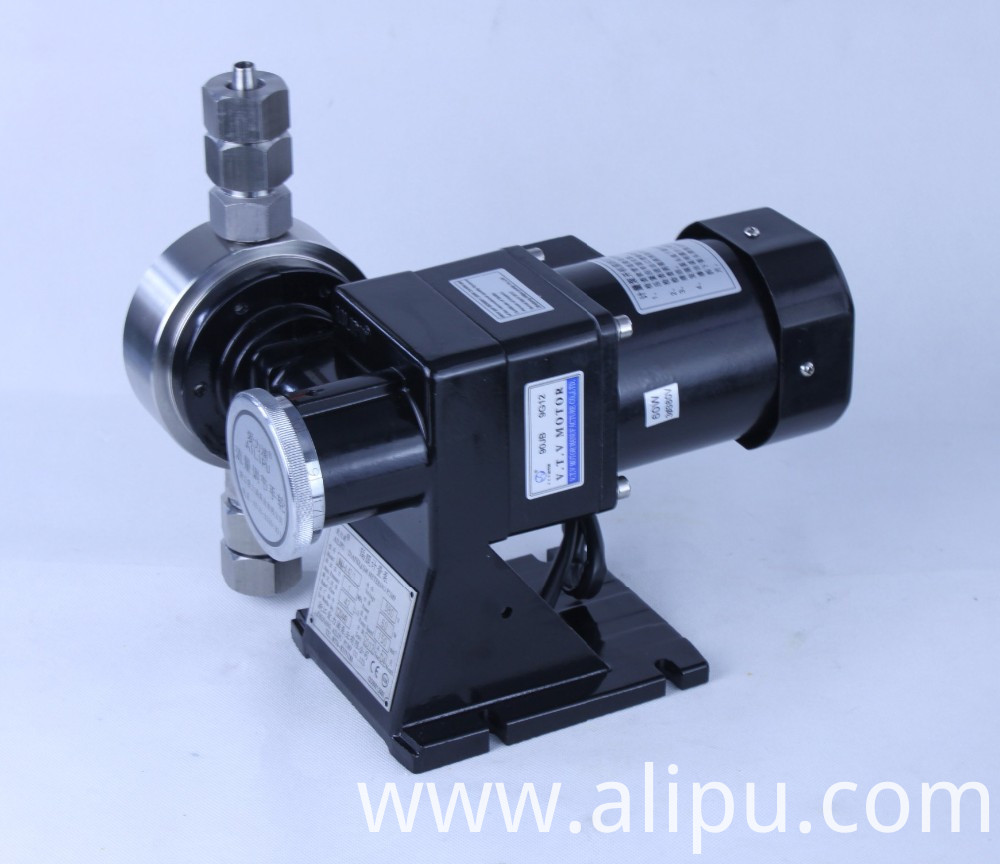

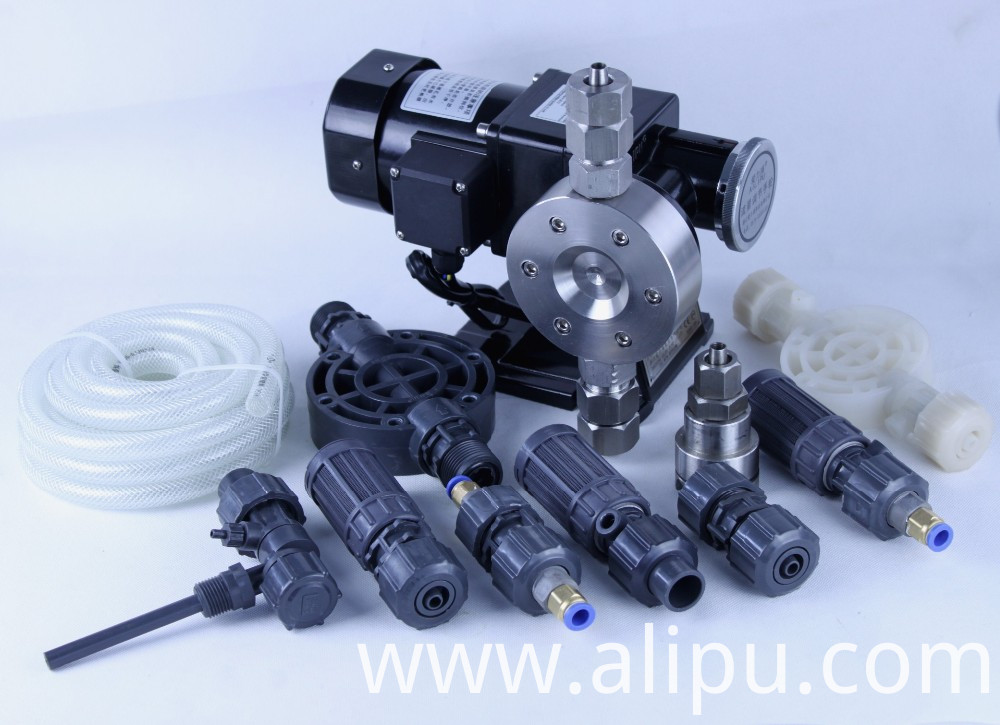

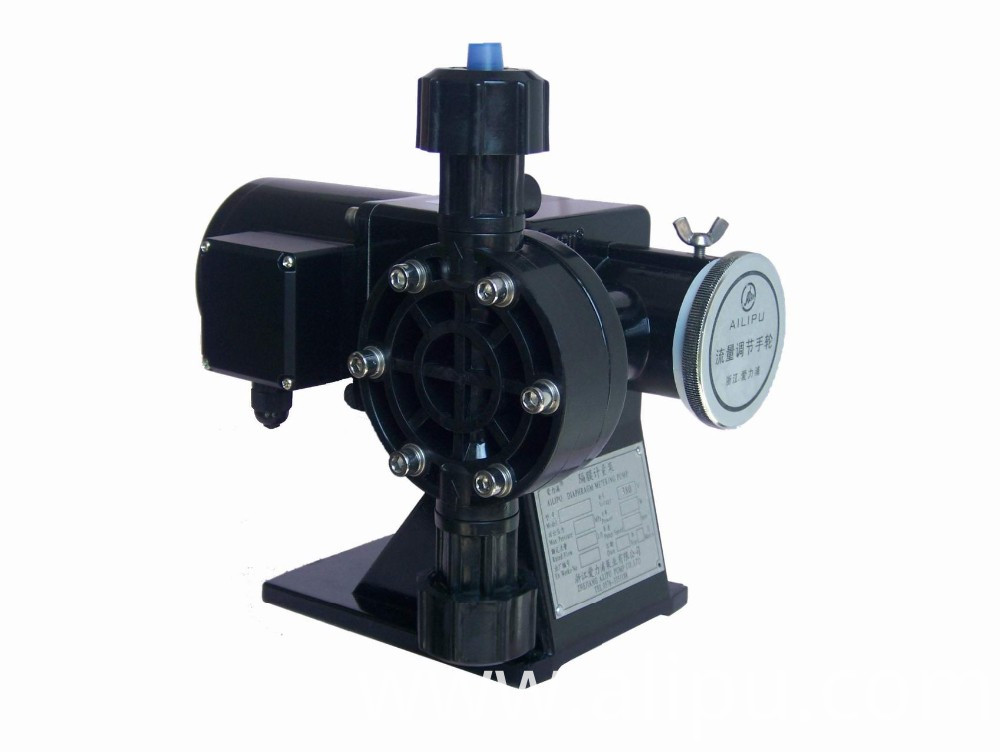

Product Show
